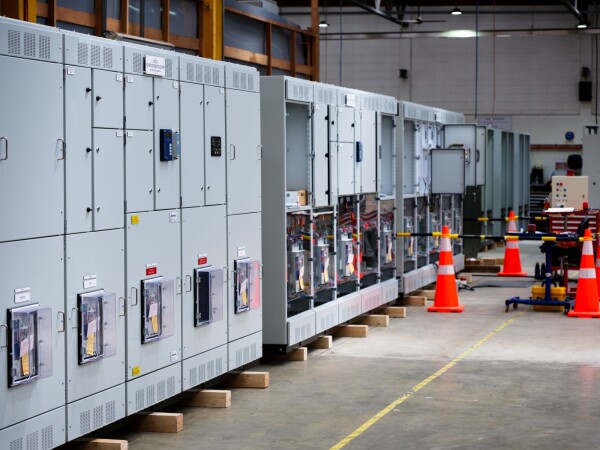

Load Distribution, Motor Control Centre
Simotrol is a self-supporting, industrial-rated switchboard system featuring a modular, tiered design.
Its versatility, ease of expansion, customization, backward compatibility, and innovative approach cater to a wide range of industrial and commercial applications.
Construction
Simotrol is constructed from 2mm folded sheet metal, with fully segregated equipment, busbar, and cabling compartments to meet all Form standards up to 4B and Ingress protection ratings up to IP54. The default finish colour is RAL 7035 Grey, powder coated with a white interior. Alternative colours are available on request.
Two standard tier heights are available: 1980mm and 2200mm with a depth of 450mm for single sided front access, and 750mm for double sided configurations.
Functional unit assemblies (modules) consist of a demountable tray and an associated door located in the equipment compartments, positioned on the accessible face of the switchboard. Cable access can be from the top or bottom.
Switchgear Independent
Simotrol is designed to accommodate a range of switchgear offerings covering the inventory of all major suppliers.
​Compliance
Simotrol is AS/NZS 61439 compliant. Independent laboratory verification has certified that Simotrol meets all the requirements of AS/NZS 61439 for low-voltage switchgear and control gear assemblies.

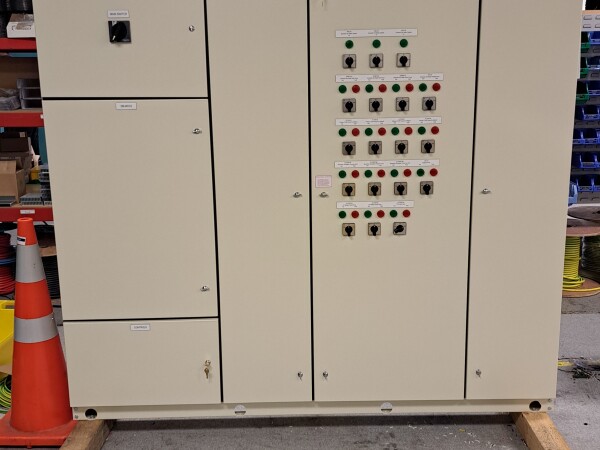

Power Distribution, Motor Control
Its modular design provides an adaptable solution that can be tailored to accommodate a customer's specific requirements.
Construction
The main enclosure is constructed from 1.6mm folded sheet metal, with an Ingress Protection rating up to IP54. The default colour finish is powder-coated cream ripple. All internal components are white, with alternative colours available upon request.
Enclosures can be customized to any size, ranging from 250mm to 2250mm in 125mm increments. Standard profile depths range from 125mm to 330mm. For floor mounted enclosures, 3mm steel plinths are provided. Doors can be hinged on either the left or right side, with cable access available from the top or bottom.
Switchgear Independent
Switchpac is designed to accommodate a wide range of switchgear from all major suppliers.
Compliance
Switchpac is fully compliant with AS/NZS 61439. Independent laboratory testing has certified that Switchpac meets all the requirements for low-voltage switchgear and control gear assemblies according to AS/NZS 61439.

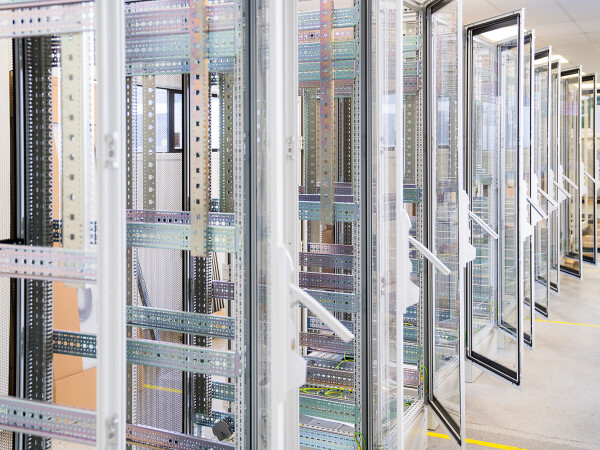

Comprehensive range of accessories
Rittal’s German-engineered enclosure systems deliver outstanding efficiency, durability, and versatility across a wide range of applications.
Supported by a comprehensive range of accessories and rigorously tested for quality, Rittal enclosures are an ideal solution for main switchboards, programmable logic controller (PLC) enclosures, secondary distribution protection, power generation, and control systems.
PrismaSET G
Suitable for all types of low voltage distribution switchboards up to 630A, with IP rating choices of IP30, IP31, IP43 and IP55. Wall mounted and floor standing enclosures are available.
PrismaSET P
Suitable for sites up to 4000A, and has IP ratings of IP30, IP31 or IP55.
PrismaSET
Has been validated by type tests as per standards IEC 61439-1&2, and includes a comprehensive range of enclosures and cubicles.

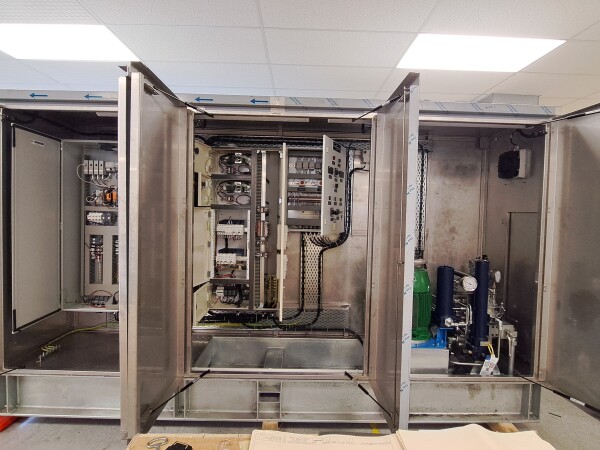

Custom made
Our proprietary enclosures are custom-made to meet your exact specifications.
Whether for indoor or outdoor use, we can manufacture enclosures in the size, configuration, and colour of your choice - ensuring a perfect fit for every project.
